PRODUCTS for ALUMINUM and ZAMAC

MALLOY 52 - Low temperature soldering rod for ZAMAC, Aluminum and Dissimilar Metals

Brochure: 52_en

Thanks to its special formulation and its low application temperature (200-280°C), it makes easy to solder, with a simple Propane torch, many metals, including zinc die-cast (ZAMAC), pewter, aluminum alloys (excluded those with more than 1.5% of magnesium), copper, brass and steel, also between them. It is ideal for repairing of difficult to weld white metals such as ZAMAC, pewter and aluminum or very dissimilar combinations as ALUMINUM-COPPER, ALUMINIUM-BRASS, ALUMINIUM STEEL-etc. To be used with its Flux Malloy 52.

MALLOY 54 - Low temperature self-fluxing Aluminium brazing rod

Brochure: 54_en

Melts at low temperature (470°C), flowing freely with a high capillary action. It is self-fluxing as the required flux is integrated in the rod. Very easy application with a simple propane torch. No need to eliminate the residual flux as it is not corrosive. Can braze all aluminum alloys, except those with more than 1.5% of Magnesium. Ideal for repairs especially on thin as sheets, tubes, fins etc. present in radiators, boats, air conditioners, and many other.

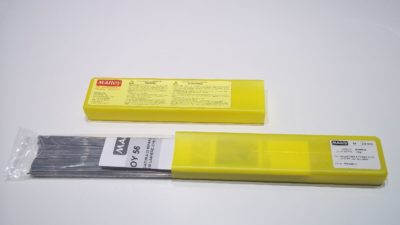

MALLOY 56 - Aluminum brazing rod

Brochure: 56_en

Allows to easily join or rebuild all types of aluminum both sheet or cast. Melting point 100°C lower than Aluminum. High mechanical strength. Same color of Aluminum. Ideal for repairs especially on thin parts as sheets, fins, tubes, found in radiators, boats, air conditioners, fittings and many others. To be used in conjunction with its special flux Malloy Flux 56. It can also be applied with TIG welding machine.

MALLOY 57 - Self-fluxing Aluminium brazing rod

Brochure: 57_en

Melts at 550°C, flowing freely with a high capillary action. It is self-fluxing as the required flux is integrated in the rod. Very easy application with a simple propane torch. No need to eliminate the residual flux as it is not corrosive. Can braze all aluminum alloys, except those with more than 1.5% of Magnesium. Ideal for repairs especially on thin as sheets, tubes, fins etc. present in radiators, boats, air conditioners, and many other.

MALLOY 550 - Special electrode for all Aluminum

Brochure: 550_en

Welds easily all aluminum including aluminum alloyed with silicon, copper or magnesium, both sheet and cast , even in dissimilar combinations between them. Welds are stronger than pure aluminum, dense and without porosity. Slag is easily removable. The electrode can also be applied by flame. Ideal for repairs on medium-high thickness.
